Dear OPAL developers and users,

I am experiencing issues with the CSR calculations in my OPAL-t simulations.

Following the examples provided in the manual, I set up a symmetric C-shaped chicane using RBEND dipoles and the default field map ("1DPROFILE1-DEFAULT.T7") for 25 cm magnets. The bunch compresses by the desired factor of 2, and the tracking completes successfully when CSR effects are not monitored.

However, when I attempt to monitor CSR effects, I define a filter as:

CSR_FILTER: FILTER, TYPE = "Savitzky-Golay", NPOINTS = 20, NLEFT = 4, NRIGHT = 4, POLYORDER = 4;

and then define the wake function as:

FS_CSR_WAKE: WAKE, TYPE = "1D-CSR-IGF", NBIN = 200, FILTERS = "CSR_FILTER";

This wake function is assigned to all dipoles and subsequent drifts. When the simulation runs with this setup, it crashes at the entrance of the second dipole. I also attempted to enable CSRDUMP = TRUE to monitor the raw CSR wake data but encountered the same issue.

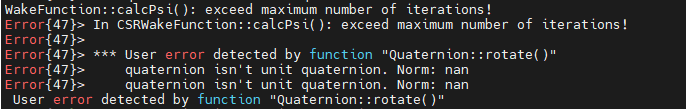

The relevant error message is:

Could you please help me understand what might be causing this issue, so that I can investigate the CSR impact on the bunch more effectively?

Thank you very much in advance for your support.

Best Regards,

Can

Dr. Can Davut | Research Associate

Accelerator Physics Group | Department of Physics & Astronomy | The University of Manchester

Office : 7.25 Schuster Building / A24B Cockcroft Institute
